The Physics of Reflection – How Sign Sheeting Returns Light to the Driver

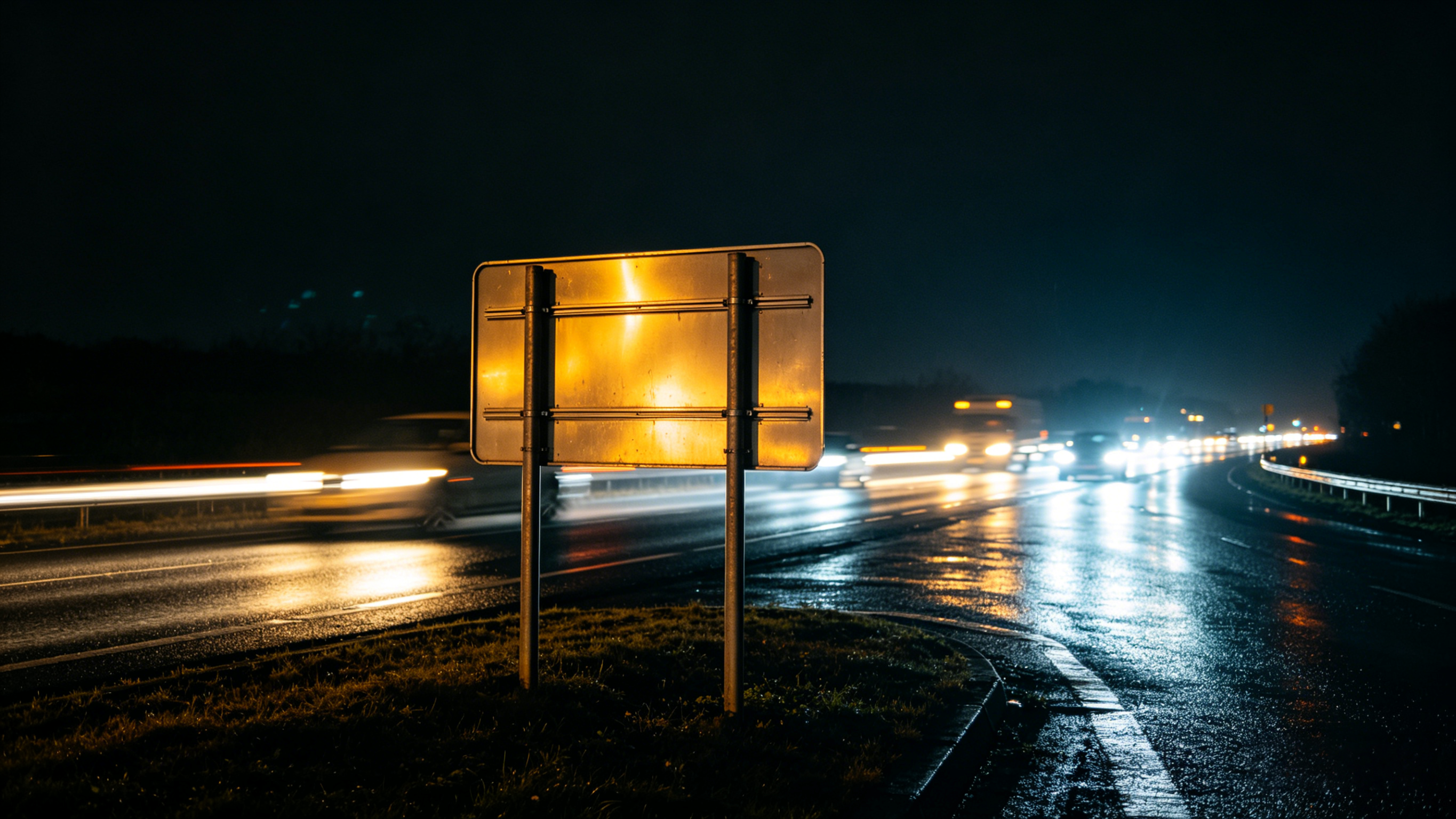

A road sign without reflectivity is virtually invisible at night. The phenomenon that makes a sign post glow in your headlights is not simple mirror-like reflection but a precise optical principle called retroreflection. Unlike a flat mirror, which bounces light away at the opposite angle, retroreflective sheeting sends light back toward its source—the vehicle and the driver’s eyes.

Two main technologies dominate modern traffic sign sheeting: glass bead and microprismatic systems. Enclosed glass-bead sheeting, developed in the late 1930s, embeds thousands of tiny glass spheres in a transparent binder. Each bead acts as a lens: light from a headlamp enters the bead, refracts, reflects off a metallic coating on the bead’s rear hemisphere, and refracts again as it exits, returning along nearly the same path. The critical parameter is the observation angle, the angle between the headlamp beam and the driver’s line of sight. For a passenger car, this angle is about 0.2 to 0.5 degrees. Standard sheeting is optimized for this narrow range.

Microprismatic sheeting, introduced commercially in the 1980s, uses arrays of cube-corner prisms. These are three mutually perpendicular reflective faces formed into a single optical element. Incident light reflects sequentially off all three faces and is returned with high efficiency. Because the geometry relies on total internal reflection or a metalized coating, prismatic sheeting can achieve retroreflection efficiencies exceeding 50%, far higher than glass beads. Crucially, engineers can adjust prism angles to broaden the entrance angle, maintaining brightness even when a sign is mounted on a curve or a slope.

Retroreflectivity is measured in candelas per lux per square meter (cd/lx/m²), a unit that describes the returned luminous intensity per unit illumination per unit area. The American ASTM D4956 standard specifies multiple sheeting types, each designed for specific roadway speeds and sign positions. High-intensity prismatic sheeting may deliver values above 1000 cd/lx/m² at an observation angle of 0.2°, ensuring a sign posted on a high-speed freeway is legible from over 300 meters.

Without this physics, the sign post would be nothing more than a silhouette against the night sky. Retroreflection transforms it into a vital information node, silently returning light and saving lives with every mile driven in the dark.
